The hidden cost of standard beacons in extreme environments

We've seen freezer beacons die at -20°C because their batteries couldn't handle the cold. Outdoor beacons corrode after a single rainy season. And every time a beacon fails, someone has to drive to the site, climb a ladder, and replace it – costing more in labour than the beacon itself.

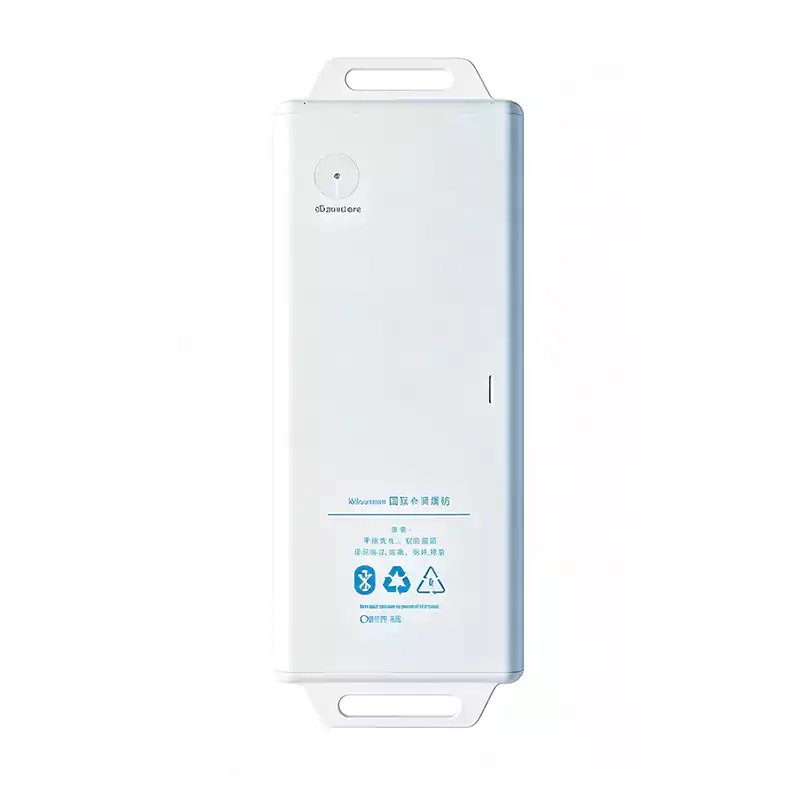

The OV01 was designed for the real world: a rectangular, easily mountable shape, a massive 2600mAh ER14505 lithium‑thionyl chloride battery, and an operating range from -55°C to +85°C. You can stick it on a shipping container crossing Siberia, or attach it to a forklift in a blast furnace area. The standard unit is splash‑proof (IPx4), and we offer an IP67 variant for deployments that face pressure washing or temporary immersion.

Why the OV01 stands out

• Industry‑leading temperature range – -55°C to +85°C operation. Battery chemistry is rated down to -55°C (ER14505). Electronics qualified for -40°C to +85°C. Works in Arctic logistics, cold storage (-25°C freezer), and desert heat.

• 2600mAh ER14505 battery – Larger than common coin cells (e.g., CR2032 220mAh). 2600mAh provides 4+ years at 500ms interval and 0dBm. At longer intervals (e.g., 2‑5 seconds), battery life extends to 7‑10 years.

• TI CC2640 Bluetooth chip – Proven low‑power architecture with stable RF performance. Supports adjustable TX power from -21dBm to +5dBm and broadcast intervals 100ms – 875ms.

• Flexible mounting – 3M VHB adhesive for quick attachment, or screw holes (two ends) for permanent installation on vibrating equipment.

• IP67 optional – Standard units are splash‑proof (IPx4). For outdoor rain, washdown, or temporary immersion, order the IP67 sealed version (same dimensions, different manufacturing process).

• Secure by design – Dynamic password authentication prevents cloning or unauthorised configuration changes – a critical feature for safety or security‑sensitive deployments.

Technical specifications – OV01

* Battery life and range depend on configuration, temperature, and physical obstructions. IP67 version adds sealing but slightly reduces serviceability (battery still replaceable with screws).

What the OV01 is NOT (honest limitations)

Applications

• Cold chain logistics – Tracking containers, pallets, and reusable assets in freezer environments (-25°C to -5°C).

• Outdoor asset tracking – Construction equipment, shipping containers, telecom towers, solar panels.

• Industrial equipment monitoring – Forklifts, cranes, and vibrating machinery (screw mount recommended).

• Personnel location in extreme climates – Staff badges in freezer warehouses, outdoor yards, or desert mining sites.

• Maritime & port logistics – IP67 variant for container tracking exposed to rain and salt spray.

Real deployment: 800 cold‑storage trailers

A European cold chain logistics company deployed 800 OV01 beacons on refrigerated trailers. Each beacon was configured with a 2‑second broadcast interval at 0dBm. The trailers regularly travel from -25°C freezer compartments to +35°C loading docks. After 42 months of operation (3.5 years), 96% of beacons were still reporting. The few failures were traced to mechanical damage (forklift collisions), not battery or temperature. The standard splash‑proof rating proved sufficient for the interior of trailer doors – no IP67 required. The company reduced asset search time by 70% and eliminated manual trailer inspection rounds.

Another client, a Canadian mining operation, used OV01 beacons on ore buckets and haul trucks in an open‑pit mine where winter temperatures drop to -45°C. The beacons continued to broadcast (reduced battery life due to cold, but still >2 years). The mounting holes allowed bolting directly to equipment, surviving vibration that had destroyed adhesive‑mounted beacons from other vendors.
