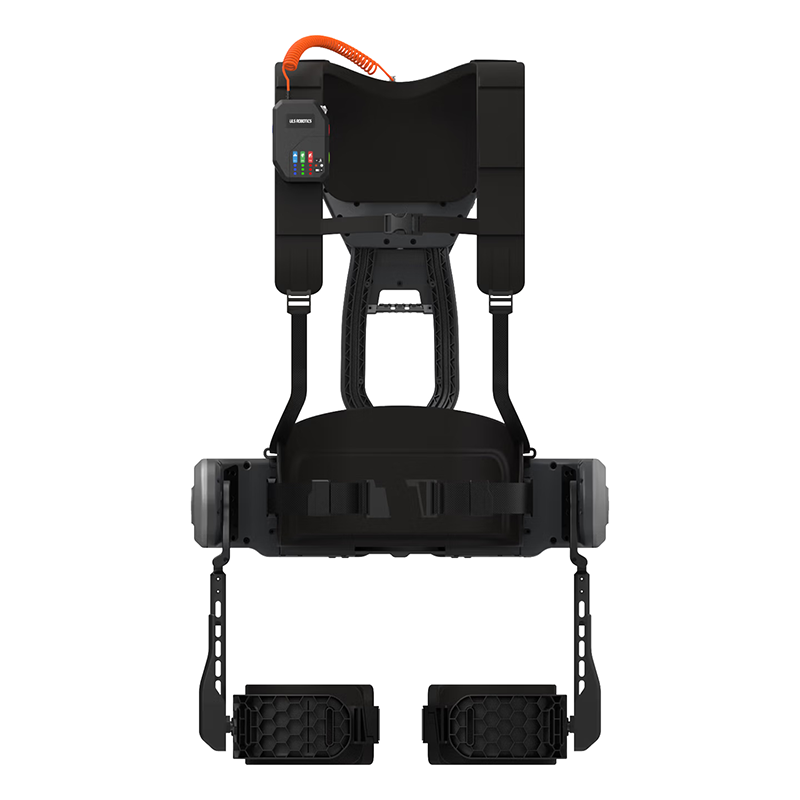

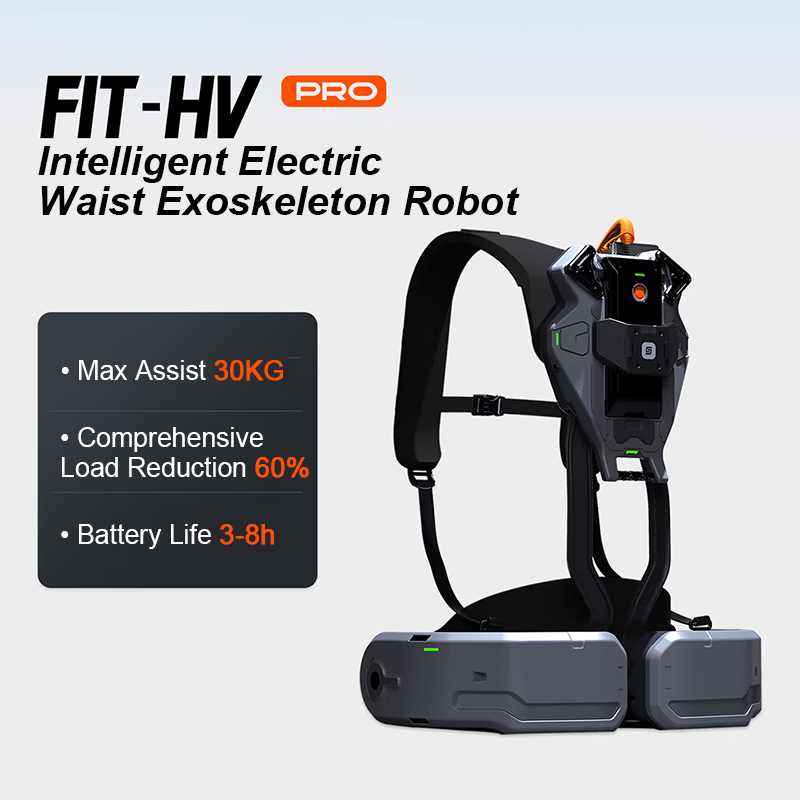

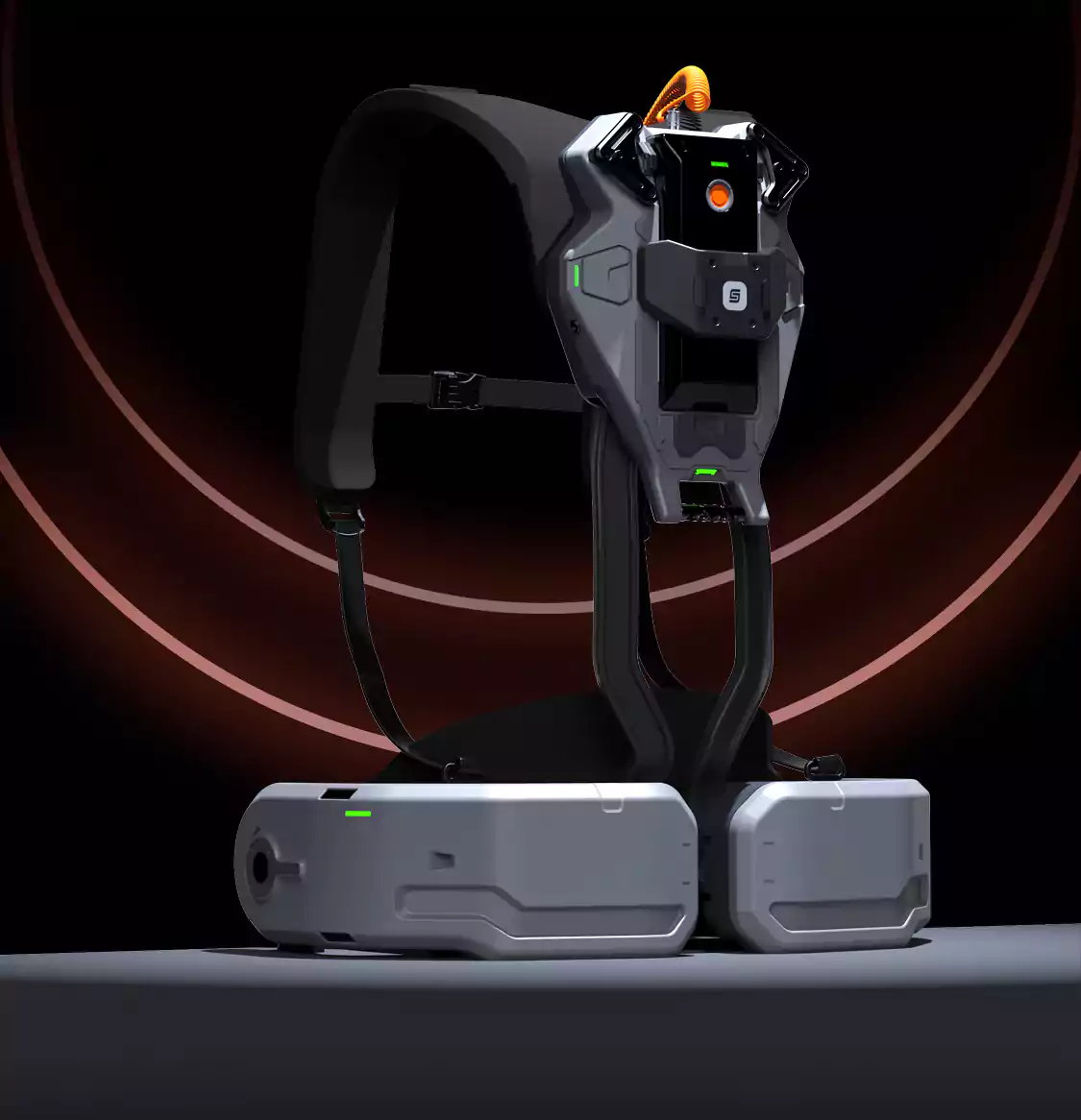

FIT-HV PRO Intelligent Electric Waist Exoskeleton Robot
Meet the Future of Industrial Lifting
Engineered for Maximum Performance

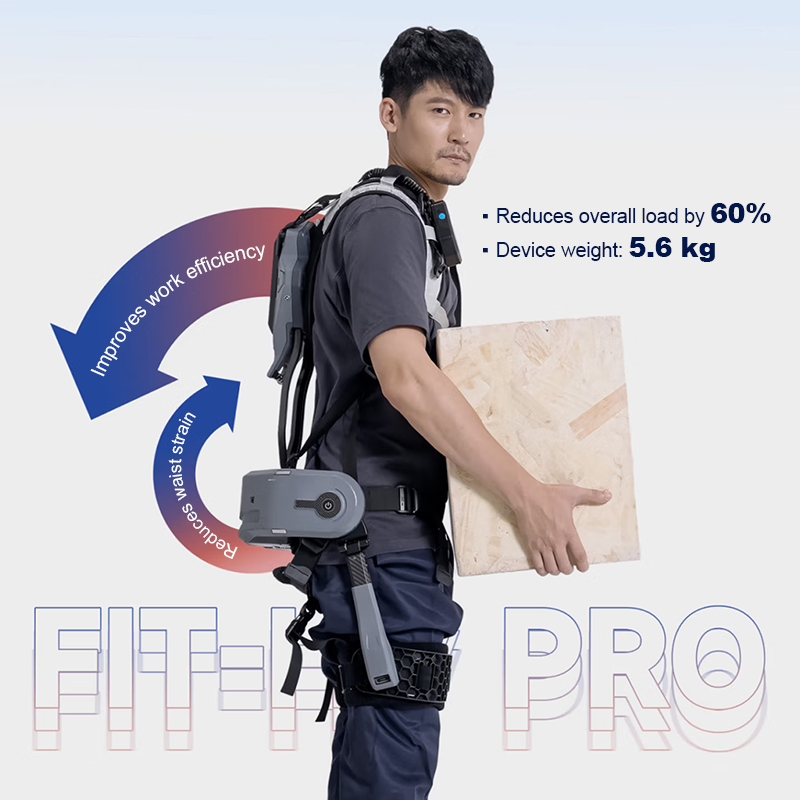

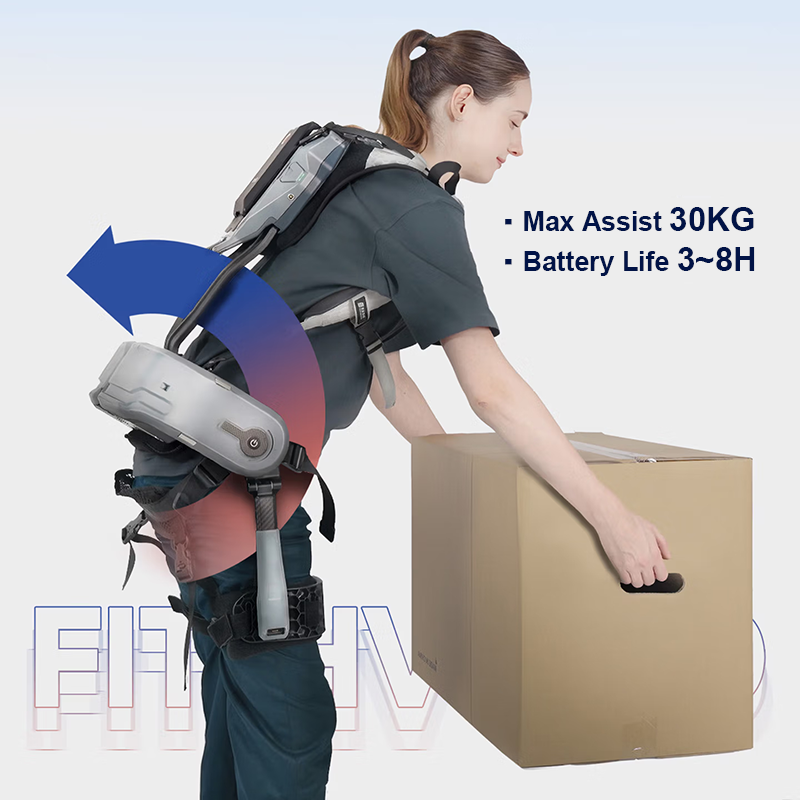

Designed to reduce lumbar strain and enhance productivity in heavy lifting tasks
3-8 hrs
Battery Life
60%
Burden Alleviation
5.8kg
Device Weight
30kg
Max Assistance

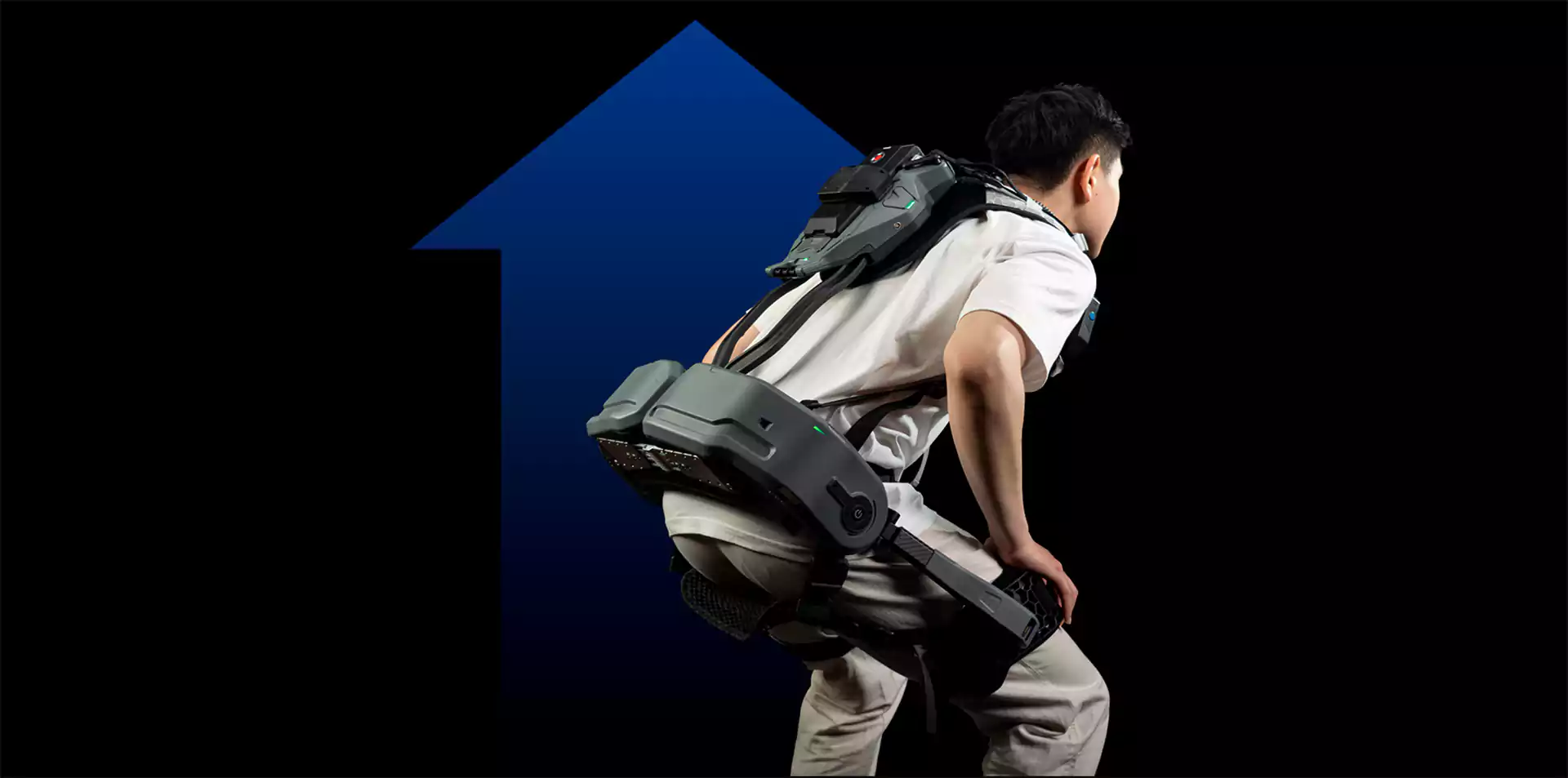

ULS Robotics Intelligent New Hip-Adjustable Exoskeleton Robot
Customizable to Fit Different Body Types
The FIT-HV PRO electric lumbar exoskeleton robot incorporates numerous advanced technologies. Deeply refined in every detail, with continuous breakthroughs in form, interaction, and functionality. It is the perfect complement to the BES-HV series.
Advanced Features & Technology
Innovative Design Meets Industrial-Grade Performance

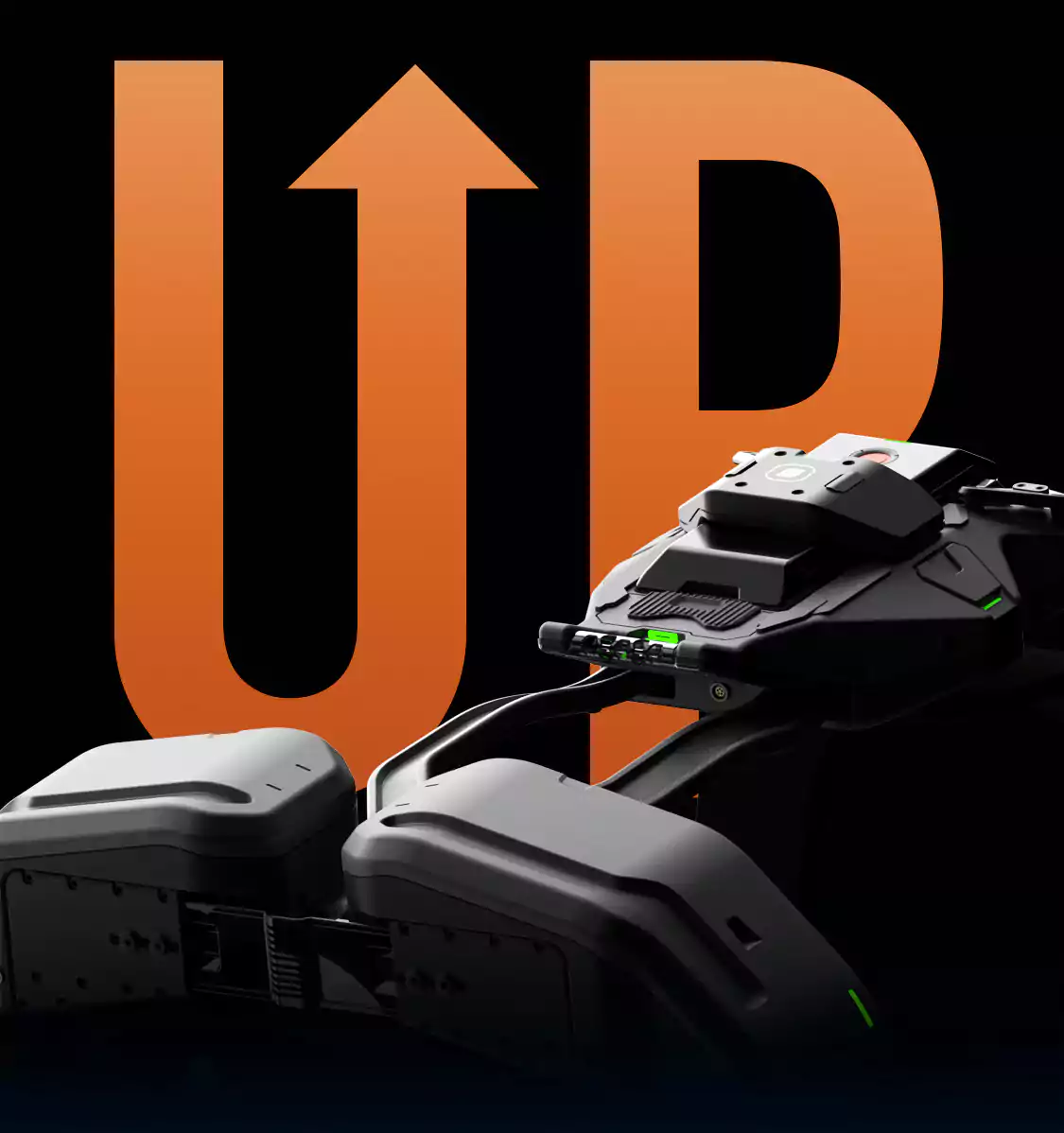

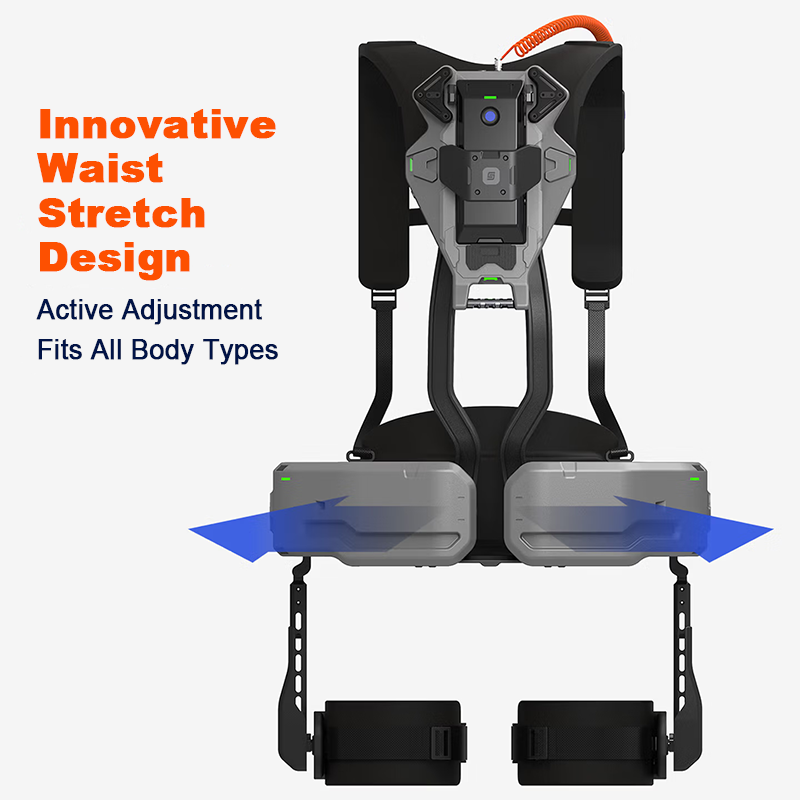

Innovative Telescopic Design
Perfectly Fits All Body Types
Redefining the back support: simple, breathable, and flexible. The innovative telescopic design ensures a perfect fit for workers of all body types.

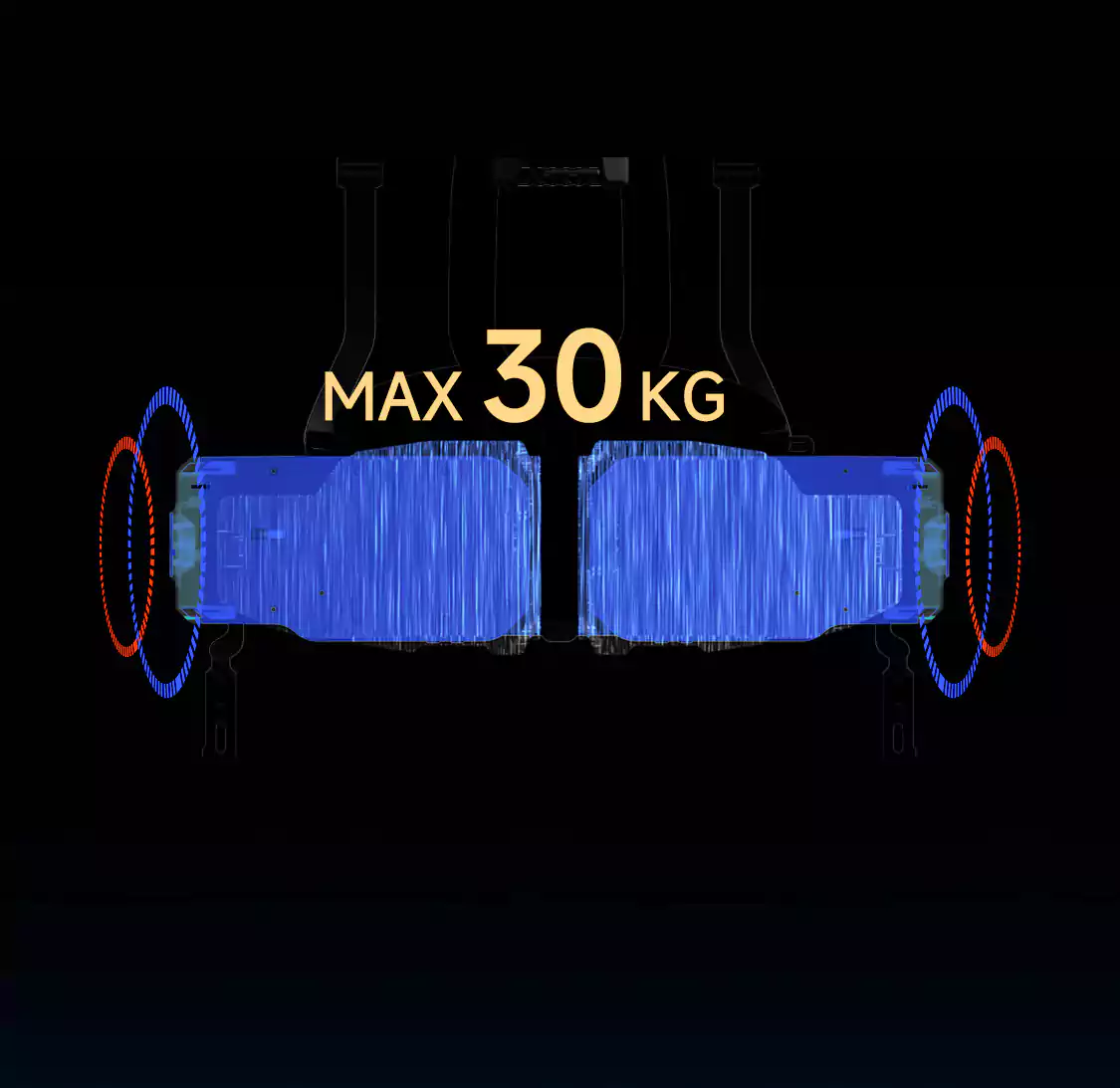

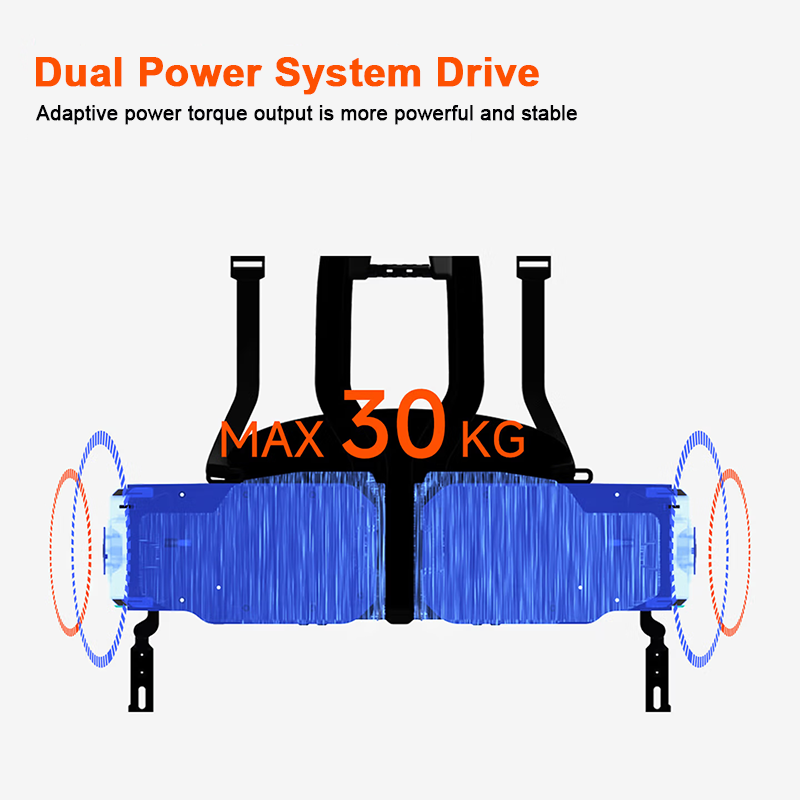

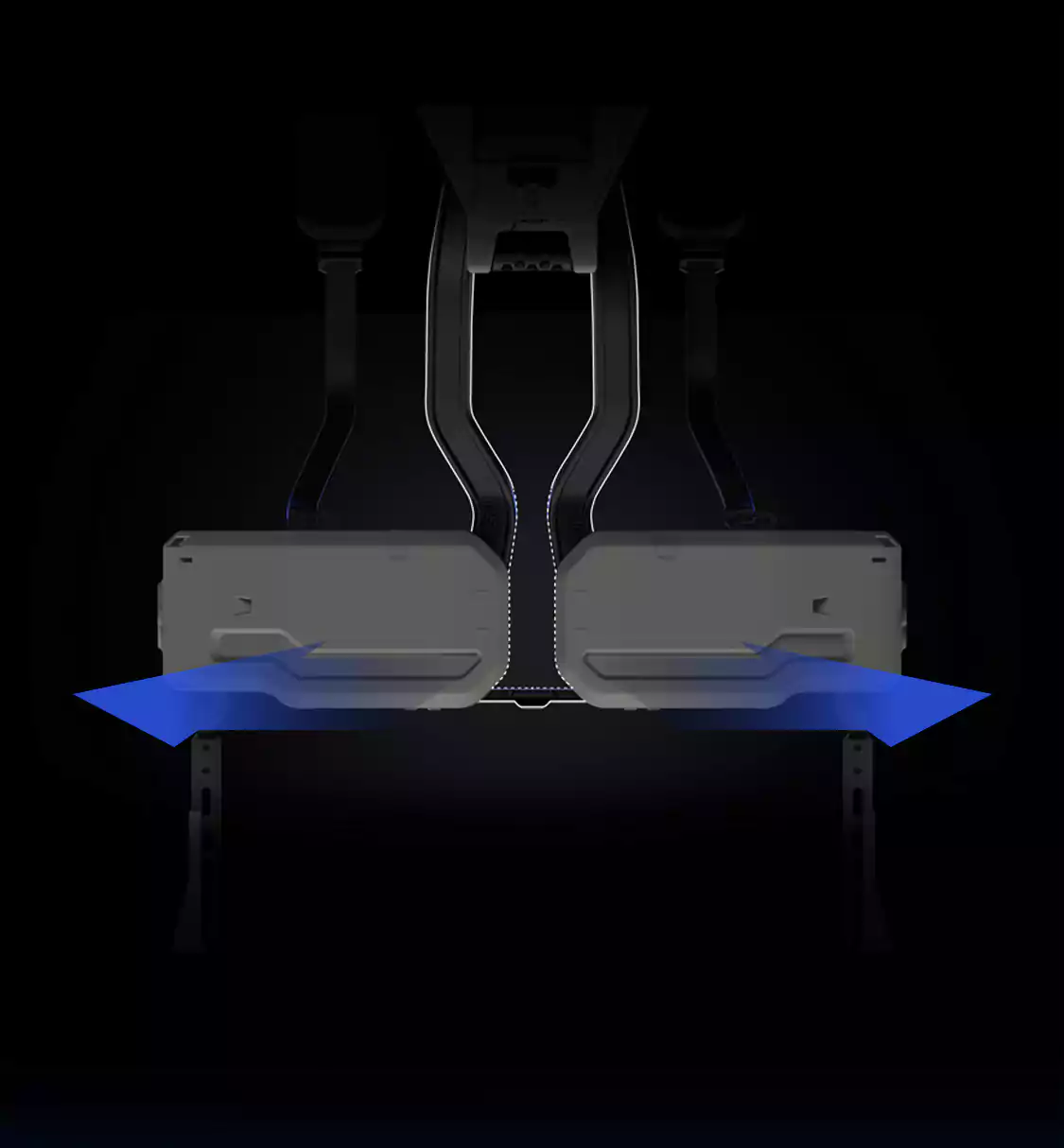

Dual Power System for Full Drive
Delivering Powerful Assistance Performance
Equipped with a self-developed power system, perfectly matched to the exoskeleton's torque output for surging yet stable performance.

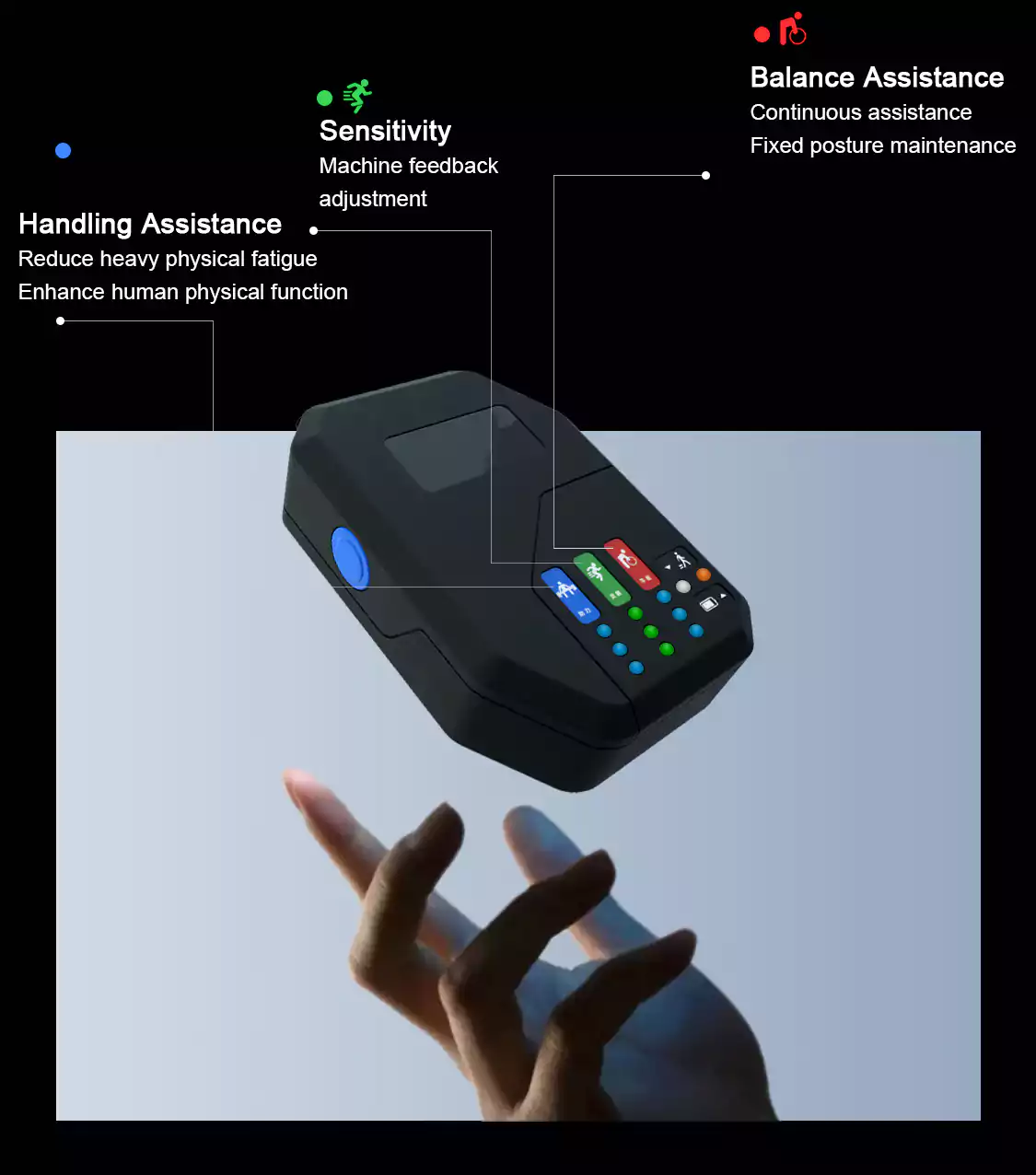

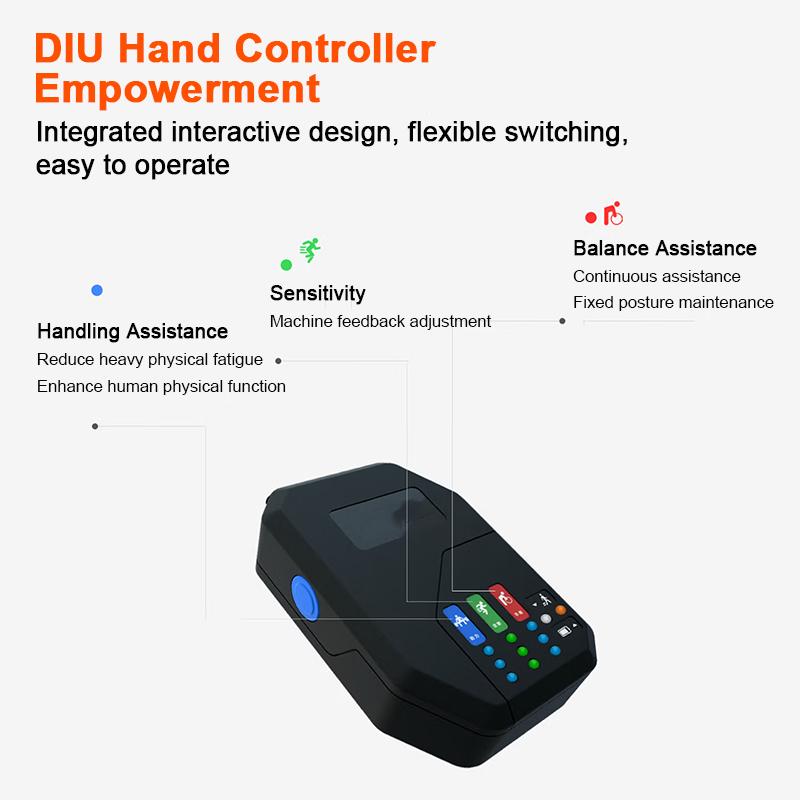

Intelligent & User-Friendly Control
Smart Handheld Controller with Integrated Design
Empowered by a smart handheld controller with integrated interaction design, enabling flexible switching, easy control, and a more intuitive operational experience.
Built with Robust Strength
Lightweight Yet Reliable Construction
High-strength engineering plastic, integrally molded for enhanced pressure resistance. Solid, lightweight, and seamless, exuding a premium feel.

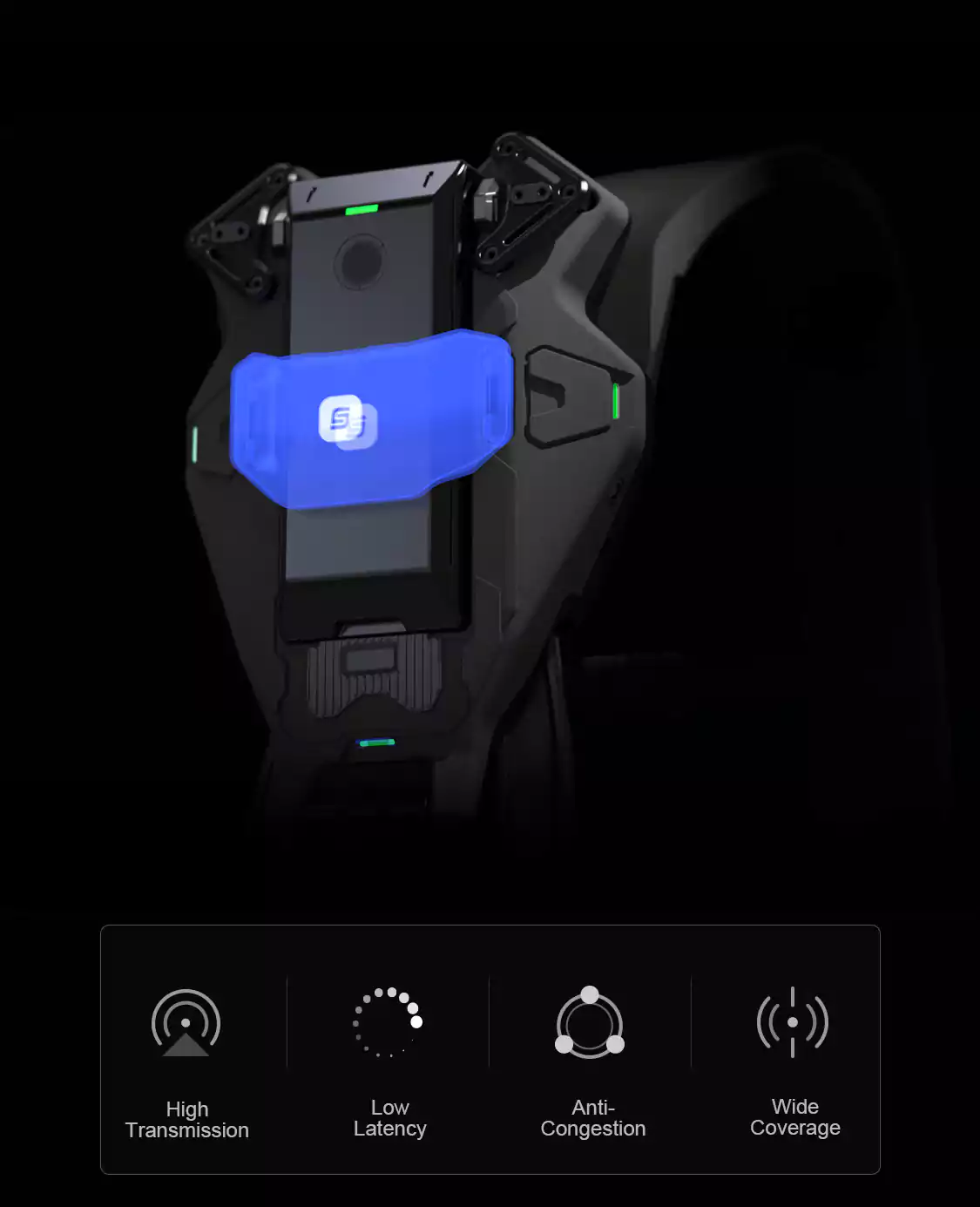

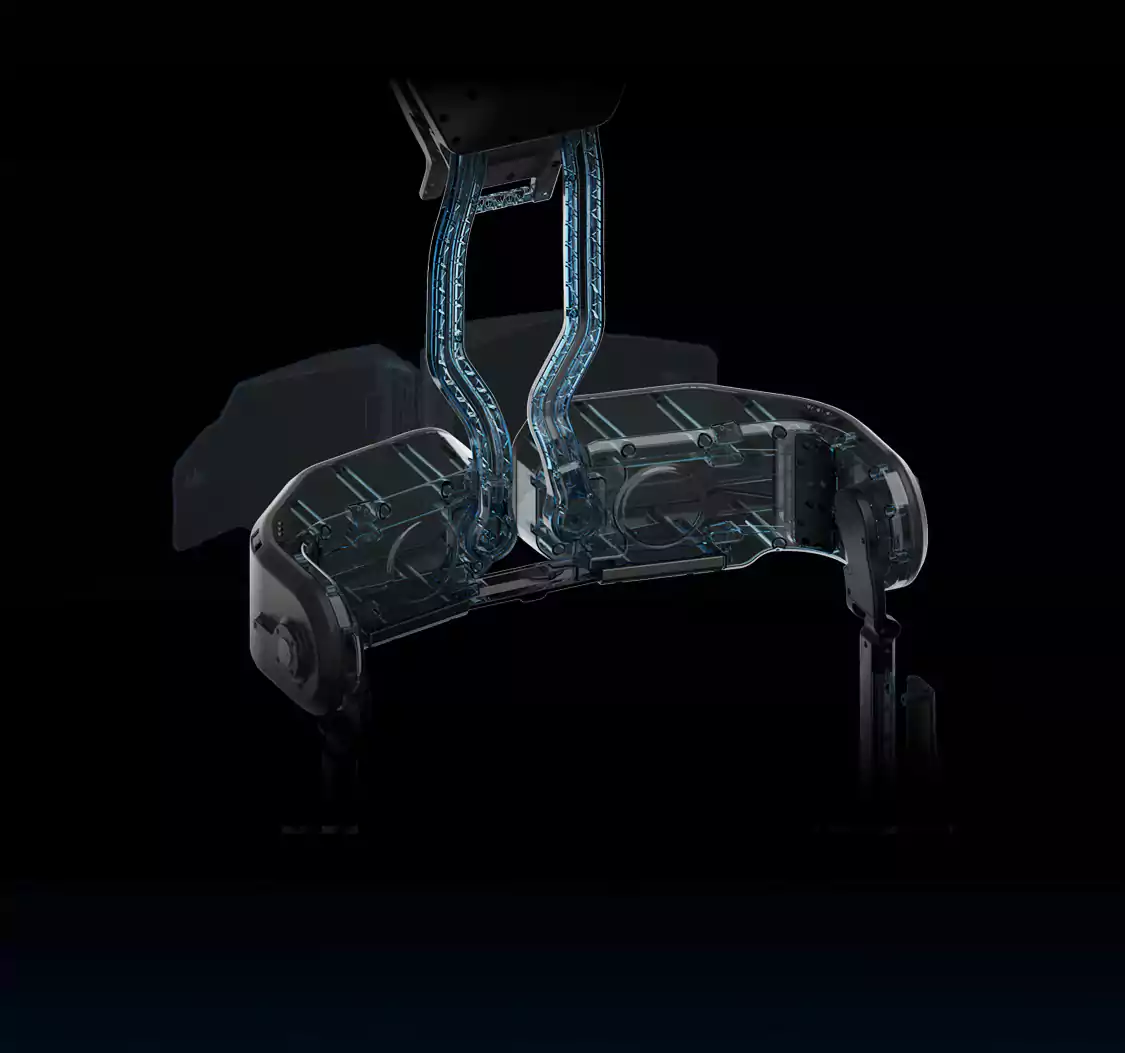

Ingenious Signal Design
Enhanced Reception Capability
High-performance signal array with wide-area radiation ensures stable and smooth transmission. Full-band low-frequency algorithms achieve true high performance with low power consumption.

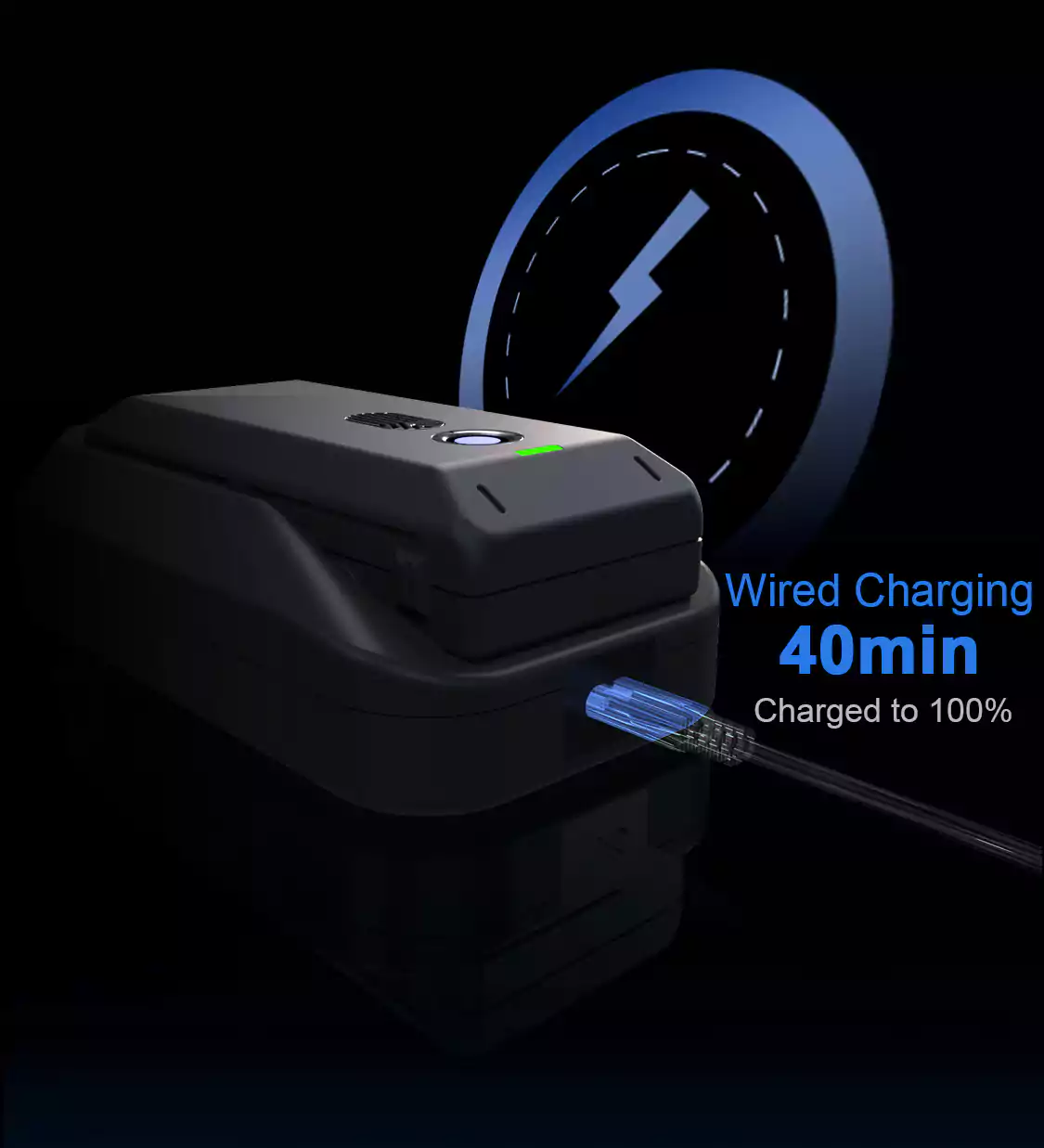

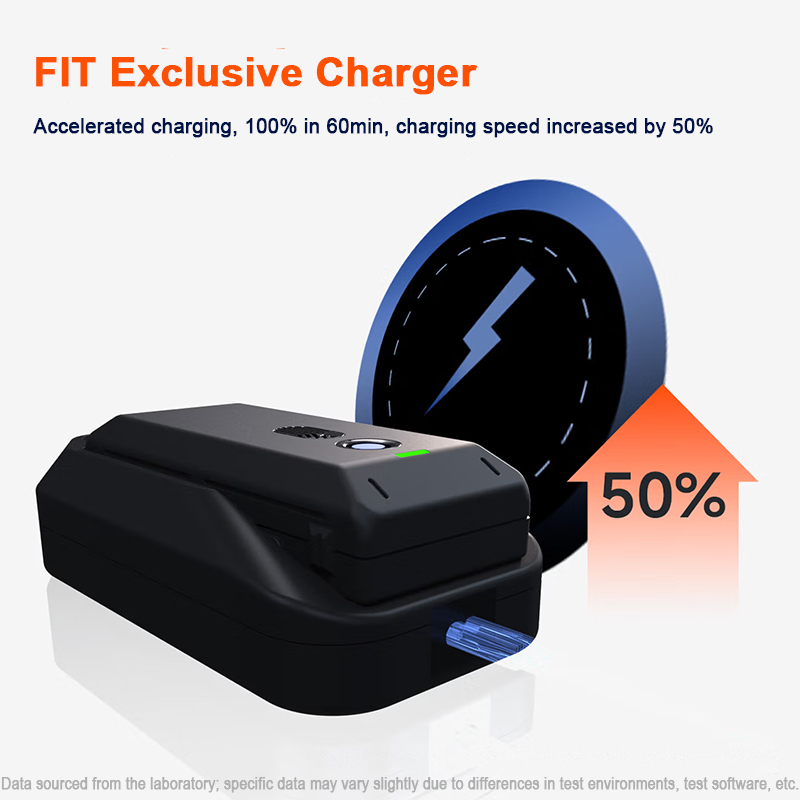

Accelerated Charging Technology
Faster Than You Think
Fast charging technology boosts charging speed by 50%, ensuring minimal downtime and maximum productivity.
Powerful Battery Performance
Endurance Without Anxiety
High-energy-density battery with abundant power ensures long-lasting operation. Say goodbye to range anxiety with 3-8 hours of continuous use.
Technical Specifications
Comprehensive Parameters Defining the Performance and Design
| Model | FIT-HV PRO Exoskeleton Robot for Waist |
| Device Size | 872mm × (500mm-560mm) × 320mm (L * W * H) |
| Hand Controller Size | 102×71×35 (mm) (length × width × height) |
| Device Weight | 5.8kg |
| Power Source | Electric power-assisted drive |
| Integrated Assistance | 30kg |
| Environmental Temperature | -20℃ ~ 50℃ |
| Working Hours | 3 ~ 8 hours |
| Battery | Li-ion Battery 36V |
| Degrees of Freedom (DOF) | 4 items |
| Material | Engineering plastics, aerospace aluminum alloys, carbon fiber |
* All specifications are based on laboratory testing under standard conditions. Actual performance may vary depending on usage and environment.
Contact Us for More Information
Get Technical Support, Pricing Details, or Schedule a Product Demonstration
Phone / WhatsApp+86 189 7480 9810
WeChat+86 189 7480 9810
Emailsales@cumond.com
Websitewww.iot-solutionhub.com
Need product datasheets, technical drawings, or application videos? Contact us to get complete technical resources and expert consultation.
