B2315 Series Wristband Straps: TPU Buckle, Velcro, Magnetic Anti-Removal, and RFID Options
Standard · Optional · Multi-Color · Anti-Removal · RFID
Strap Options
| Strap Type | Status | Color Options | Material | Best For |
|---|---|---|---|---|
| TPU Buckle Strap | Standard | Black | TPU | Everyday wear, standard configuration |
| Velcro Strap | Standard | Black | Nylon velcro | Elderly users, quick on/off, easy adjustment |
| Standard Buckle Strap | Optional | Multiple colors | TPU | Color-coding, personal preference |
| Dual-Hole Soft Strap | Optional | Black | TPU + silicone blend | Sensitive skin, long-term monitoring, comfort during sleep |
| Velcro Strap | Optional | Multiple colors | Nylon velcro | Color-coding, dexterity-friendly |
| Magnetic Anti-Removal Strap | Optional | Red or white (black interior) | TPU with magnetic lock | Secure supervision, dementia care |
| RFID Tag Strap | Optional | Black | Silicone/TPU with embedded 13.56MHz NFC | Access control, payment, identification |
| Tamper-Proof Screws | Optional | Silver | Metal | Alternative to magnetic lock |
Functional Description

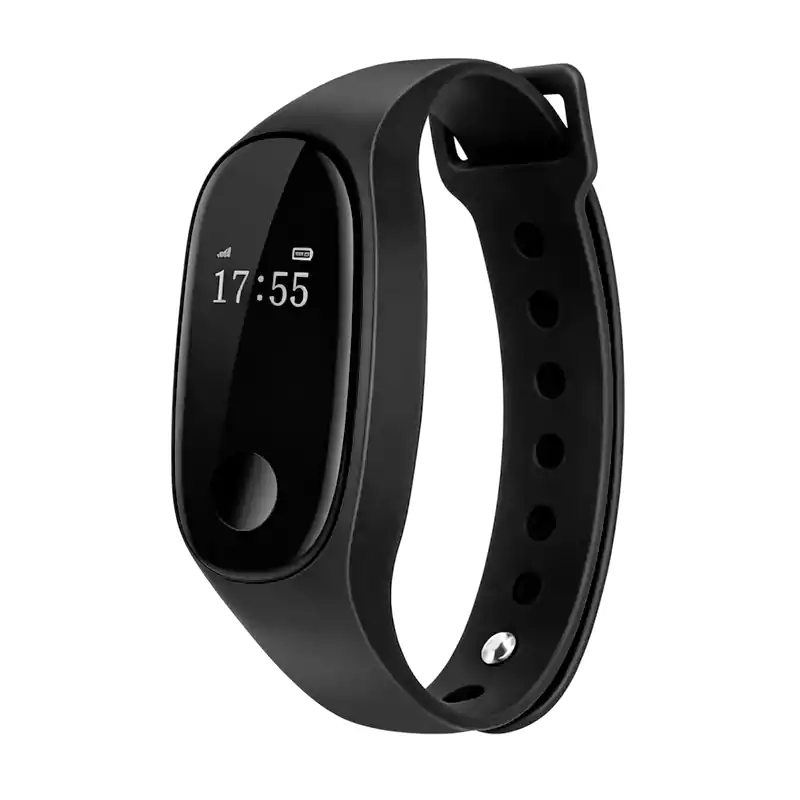

TPU Buckle Strap (Standard)
Black TPU with a loop-and-pin buckle closure. The default option shipped with B2315 series wristbands. Lightweight, comfortable for all-day wear, and resistant to sweat and moisture. Standard buckle provides secure fastening with easy intentional removal.
Velcro Strap (Standard)
Black nylon velcro. Also shipped as a standard option alongside the TPU buckle strap. No buckle dexterity required. Infinitely adjustable — no fixed holes. Pull to fasten, peel to release. Designed for elderly users, rehabilitation patients, and anyone with reduced hand function. Soft against the skin.
Dual-Hole Soft Strap (Optional)
An extra-soft strap design with a dual-hole adjustment system. Constructed from a softer TPU and silicone blend than the standard buckle strap. The dual-hole design distributes pressure more evenly across the wrist, reducing skin irritation during continuous 24/7 wear. Recommended for users with sensitive skin, long-term monitoring patients, and deployments where comfort during sleep is critical. The softer material is less resistant to heavy abrasion than the standard TPU — best suited for indoor care settings rather than outdoor industrial use.

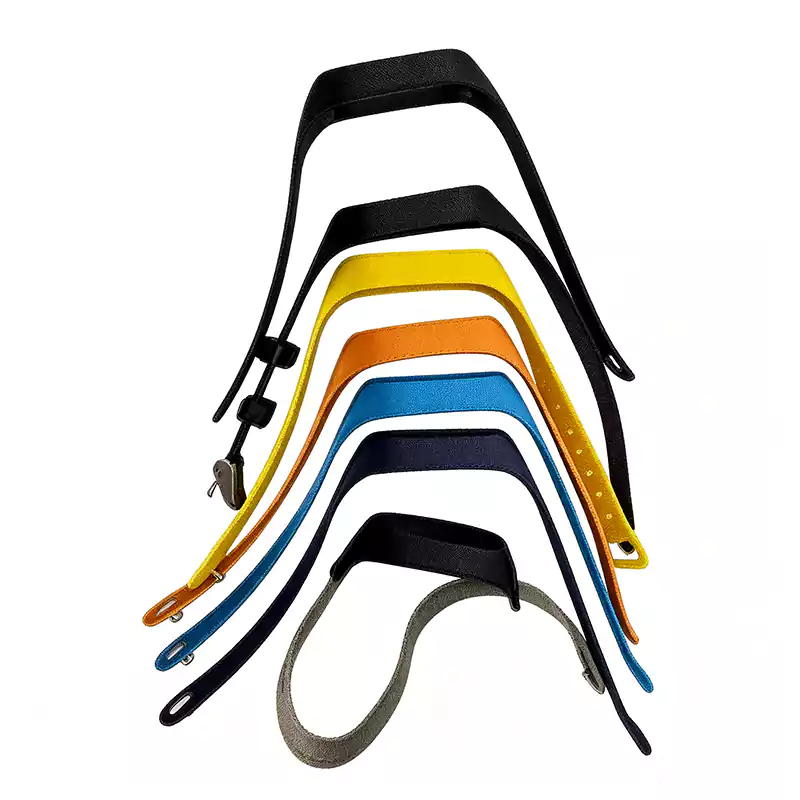

Standard Buckle Strap – Multi-Color (Optional)
Same TPU construction as the standard black, available in multiple colors. Used for ward color-coding in hospitals, team identification in care facilities, or personal preference.

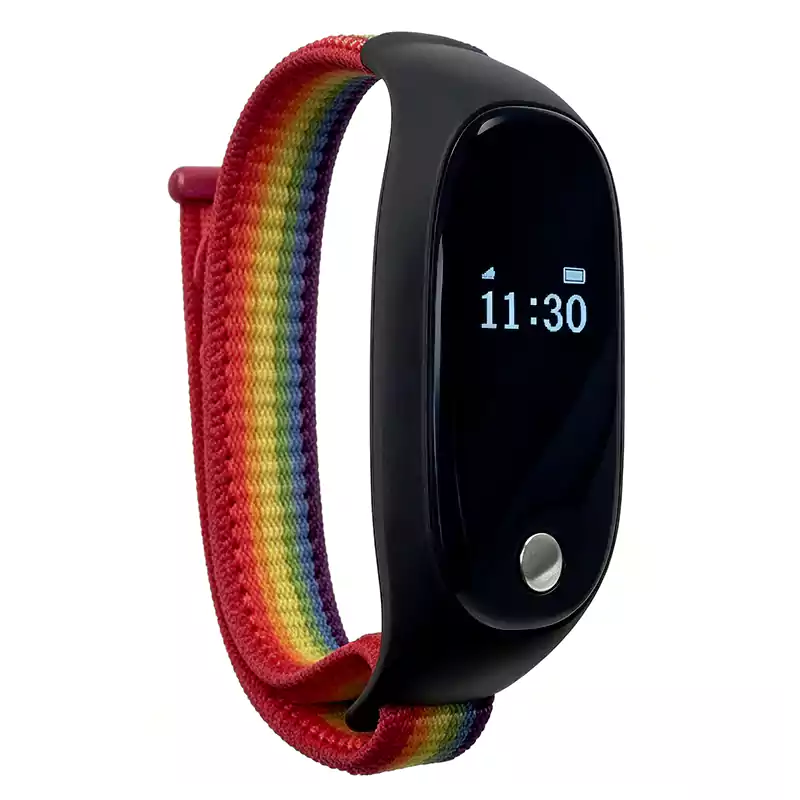

Velcro Strap – Multi-Color (Optional)
Same nylon velcro construction as the standard black, available in multiple colors. Combines easy fastening with visual identification.

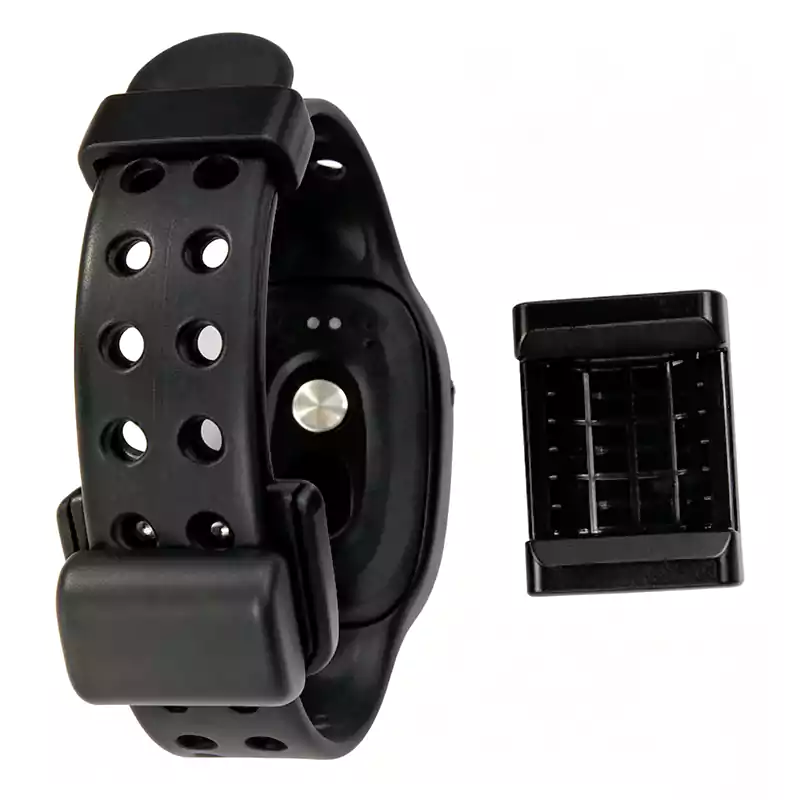

Magnetic Anti-Removal Strap (Optional)
TPU strap with an embedded magnetic locking mechanism. Red or white exterior with black interior. Cannot be unfastened by the wearer — requires a magnetic key held by authorized staff. When paired with the B2315's wear detection sensor, removal attempts trigger a platform alert. Used in dementia care, psychiatric wards, and any setting where unsupervised removal must be prevented. Magnetic key included.

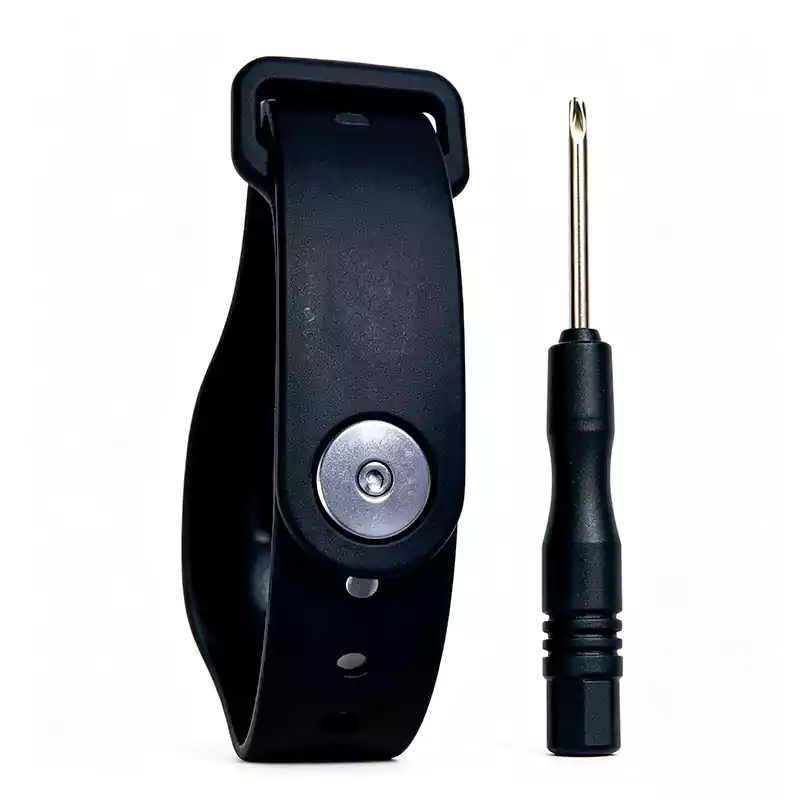

Tamper-Proof Screws (Optional)
Metal screws replace the standard quick-release spring bars. The strap cannot be removed without the included screwdriver. A lower-cost alternative to the magnetic anti-removal strap. Suitable for settings where the wearer might attempt to remove the device but does not require the immediate alert capability of the magnetic system.
RFID Tag Strap (Optional)
A 13.56MHz NFC chip is embedded in the strap material. Functions as a door access card, canteen payment token, or identity verification badge. The NFC tag operates independently of the wristband battery — access and payment functions remain available even if the device is depleted. Available with M1 card or CPU card chip depending on security requirements.
Product Specifications
| Category | Detail |
|---|---|
| Compatibility | B2315G, B2315P, B2315L, B2315BT, and all B2315 series variants |
| Standard Options | Black TPU buckle strap; black velcro strap |
| Optional Colors | Multiple colors available for buckle and velcro straps; red or white for magnetic anti-removal (black interior) |
| RFID Frequency | 13.56MHz (M1 card or CPU card) |
| Anti-Removal Lock | Magnetic key required (included with magnetic strap) |
| Tamper-Proof Screws | Requires screwdriver (included); prevents wearer from removing strap |
| Customization | Laser-engraved QR code, custom information, custom colors |
| Packaging | Individual strap ×1; tamper-proof screws and screwdriver included with screw option; magnetic key included with magnetic strap |
Compatibility
All straps are exclusively designed for the B2315 series:
B2315G (4G Cat.1)
B2315P (4G Cat.1 + SpO2)
B2315L (LoRaWAN)
B2315BT (Bluetooth only)
B2315K (NB-IoT)
B2315+ (NB-IoT)
B2315M (Cat.M)
Not compatible with W200, W300, or B5515 series — those use different strap attachment mechanisms.
Ready to customize your B2315 wristband straps?
Request a quote or sample for your preferred strap options. We'll help you select the right combination for your deployment — from standard TPU to magnetic anti-removal and RFID.
